2410(2.5X6)圓管貼片保險絲
Description：
The SMD2410 fuse is RoHS compliant,Halogen Free and 100% lead-free. This product is fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly.The SMD2410 design has enhanced inrush withstand characteristics over . The unique time delay feature of this fuse design helps solve the problem of nuisance “opening” by accommodating inrush currents that normally cause a fast-acting fuse to open。
Features：
? Lead-free and Halogen Free ? Time-lag? Small size ? Wide range of current ratings available ? Wide operating temperature range? Low temperature de-rating
Applications：
Secondary protection for space constrained applications:
? Notebook PC ? LCD/PDP TV ? LCD monitor ? LCD/PDP panel ? LCD backlight inverter ? Portable DVD player ? Power supply? Networking ? PC server ? Cooling fan system ? Storage system ? Telecom system ? Wireless basestation ? Game console ? Office Automation equipment ? Battery charging circuit protection ? Industrial equipment? Medical equipment ? Automotive

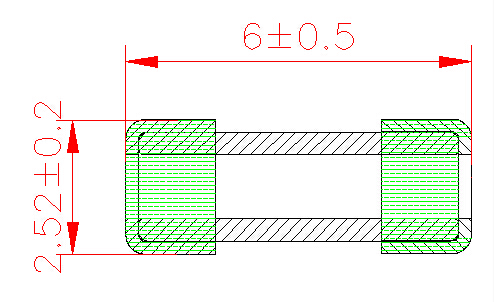

Dimensions
Material Details
|
NO.
|
Part Name
|
Material
|
|
1
|
End caps
|
Copper nickel/tin plating
|
|
2
|
Body
|
Ceramic Tube
|
|
3
|
Wire
|
Alloy wire
|
|
4
|
Explosion proof sand
|
Quartz sand
|
Electrical Characteristics for Series
|
% of Ampere rating
|
OpeningTime
|
|
100%
|
4 hours, Minimum
|
|
200%
|
60 sec., Max.
|
Electrical Specifications by Item
|
Catalog
Number
|
Ampere
Rating
|
MaxVoltage
Rating(V)
|
Interrupting
Rating
|
NominalCold
Resistance
(Ohms)
|
Nominal
Melting i2t(A2Sec).
|
AgencyApprovals
|
|
UL
|
CCC
|
|
.062
|
.062
|
250V/300VAC
72V/125VAC/DC
|
100A @125VAC
300A @ 65VAC
300A @ 100VDC
1000A @ 32VDC
500A @ 72VDC
|
7.000
|
0.000113
|
×
|
|
|
.125
|
.125
|
1.700
|
0.00174
|
×
|
|
|
.250
|
.250
|
0.665
|
0.0116
|
×
|
|
|
.375
|
.375
|
0.395
|
0.0296
|
×
|
×
|
|
.500
|
.500
|
0.280
|
0.0598
|
×
|
×
|
|
.630
|
.630
|
0.205
|
0.094
|
×
|
×
|
|
.750
|
.750
|
0.175
|
0.153
|
×
|
×
|
|
001.
|
.1.00
|
0.128
|
0.256
|
×
|
×
|
|
1.25
|
.1.25
|
0.100
|
0.390
|
×
|
×
|
|
01.5
|
.1.50
|
0.0823
|
0.587
|
×
|
×
|
|
002.
|
.2.00
|
0.0473
|
0.405
|
×
|
×
|
|
02.5
|
2.50
|
0.0360
|
0.721
|
×
|
×
|
|
003.
|
3.00
|
0.0290
|
1.19
|
×
|
×
|
|
03.5
|
3.50
|
0.0240
|
1.58
|
×
|
×
|
|
004.
|
4.00
|
0.0204
|
2.45
|
×
|
×
|
|
005.
|
5.00
|
0.0155
|
4.14
|
×
|
×
|
|
006.
|
6.00
|
0.0128
|
7.36
|
×
|
×
|
|
007.
|
7.00
|
0.0105
|
10.4
|
×
|
×
|
|
010.
|
10.0
|
0.00705
|
25.5
|
×
|
×
|
|
012.
|
12.0
|
0.0055
|
45.2
|
×
|
×
|
|
015.
|
15.0
|
0.00446
|
68.8
|
×
|
×
|
Notes: - l2t calculated at 8ms. Resistance is measured at 10% of rated current, 23oC

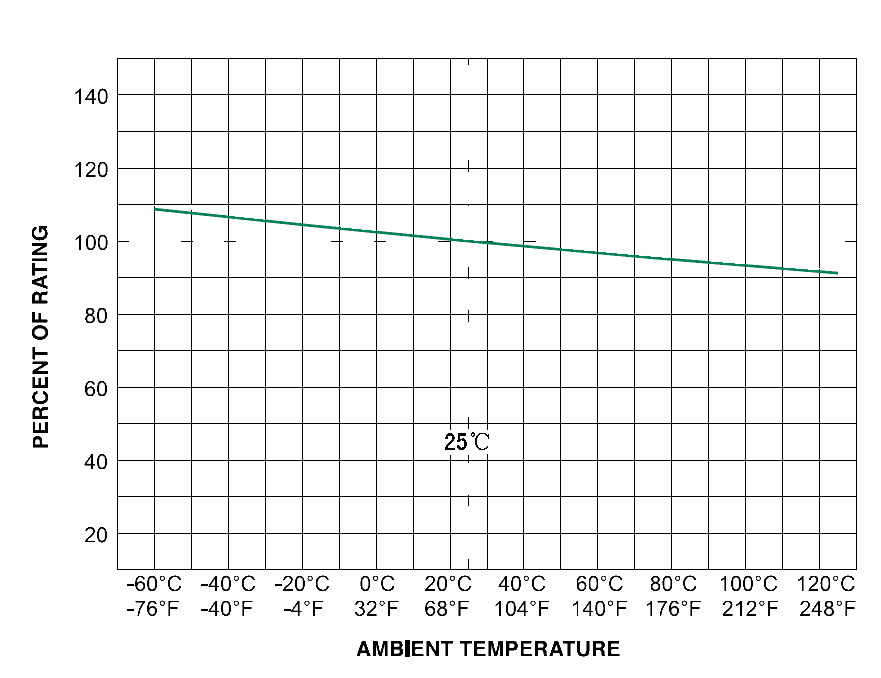

Temperature Derating Curve
Notes:
1. Derating depicted in this curve is in addition to the standard derating of 20% for continuous operation.
Example:For continuous operation at 75 degrees celsius, the fuse should be derated as follows:I = (0.80)(0.85)IRAT= (0.68)IRAT

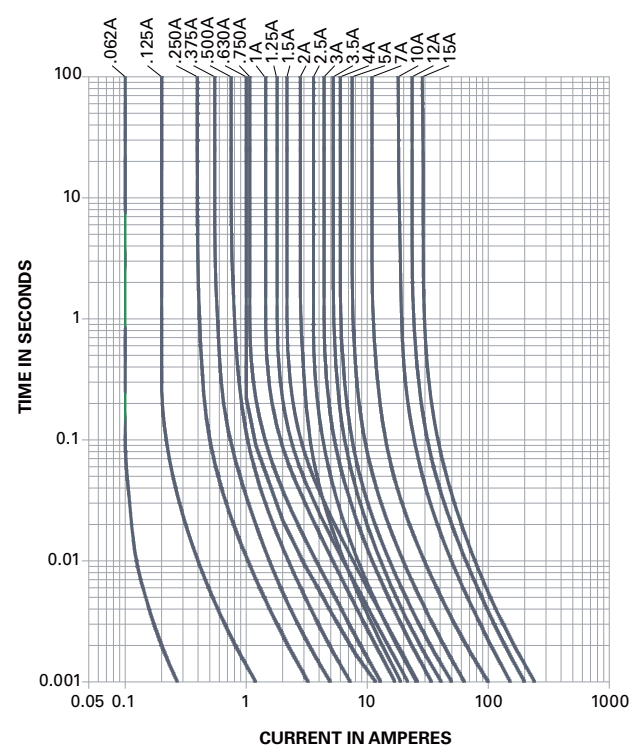

Average Time Current Curves

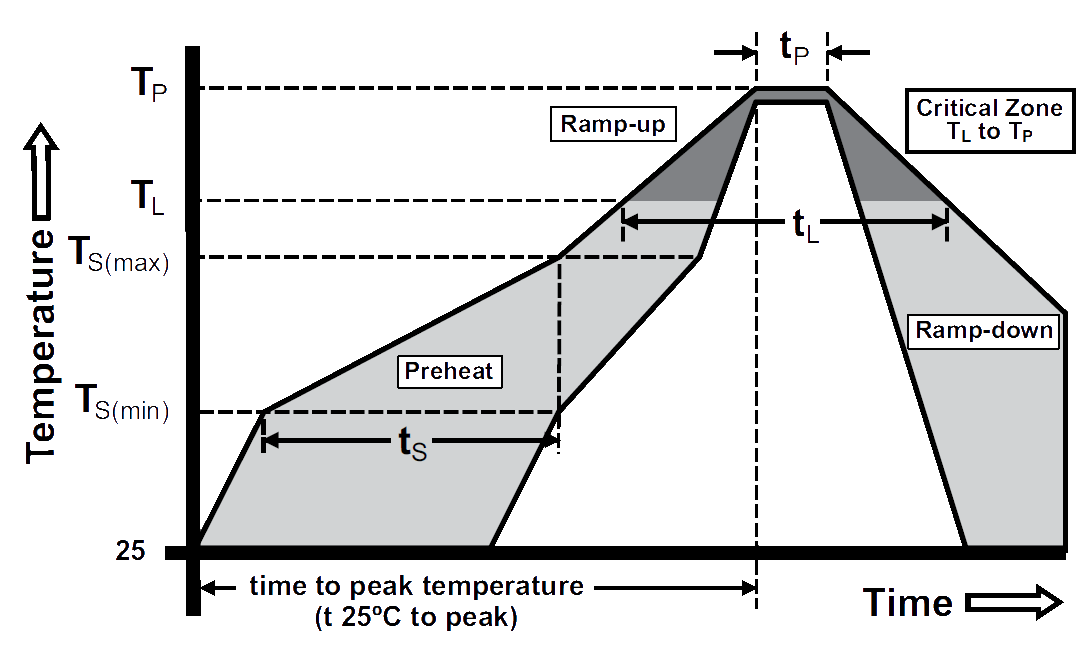

Soldering Parameters
|
Reflow Condition
|
Pb – Free assembly
|
|
Pre Heat
|
- Temperature Min (Ts(min)) 150°C
|
|
- Temperature Max (Ts(max)) 200°C
|
|
- Time (Min to Max) (ts) 60 – 120 secs
|
|
Average ramp up rate (Liquidus Temp (TL) to peak
|
3°C/second max
|
|
TS(max) to TL - Ramp-up Rate
|
3°C/second max
|
|
Reflow
|
- Temperature (TL) (Liquidus) 217°C
|
|
- Temperature (tL) 60 – 90 seconds
|
|
Peak Temperature (TP)
|
260+0/–5 °C
|
|
Time within 5°C of actual peak Temperature (tp)
|
20 – 40 seconds
|
|
Ramp-down Rate
|
5°C/second max.
|
|
Time 25°C to peak Temperature (TP)
|
8 minutes max.
|
|
Do not exceed
|
260°C
|
|
Wave Soldering Parameters
|
260°C Peak Temperature,3 seconds max.
|
Product Characteristics
|
Materials
|
Body: Ceramic Terminations: Gold-plated Caps
|
|
Product Marking
|
Brand, Amperage Rating
|
|
Operating Temperature
|
-55°C to 300V°C
|
|
Moisture Sensitivity Level
|
Level 1, J-STD-020C
|
|
Solderability
|
MIL-STD-202, Method 208
|
|
Insulation Resistance (after Opening)
|
MIL-STD-202, Method 302,
Test ConditionA (10,000 ohms minimum)
|
|
Thermal Shock
|
MIL-STD-202, Method 107, Test Condition B, 5 cycles, -65°C to 300V°C,
15 minutes @ each extreme
|
|
Mechanical Shock
|
MIL-STD-202, Method 213, Test I:Deenergized. 100G’s pk amplitude,
sawtooth wave 6ms duration, 3 cycles xYZ+xyz = 18 shocks
|
|
Vibration
|
MIL-STD-202, Method 201: 0.03" amplitude, 10-55 Hz in 1 min. 2hrs each xYZ=6hrs
|
|
Moisture Resistance
|
MIL-STD-202, Method 106, 10 cycles
|
|
Salt Spray
|
MIL-STD-202, Method 101, Test Condition B (48hrs)
|
|
Resistance to Soldering Heat
|
MIL-STD-202, Method 210, Test condition B (10 sec at 260°C)
|
Packaging
|
packaging Option
|
packaging Specification
|
Quantity
|
Quantity &packaging code
|
|
24 mm Tape and Reel
|
EIA RS-481-2
|
1000
|
ER
|
